Deutz Fahr 55 e Agromaxx tractor full specifications & price

SAME Deutz Fahr 55 e Agromaxx tractor has 3 cylinder naturally aspirated liquid cooled engine which can produce about 55 hp at 2350 engine rated RPM. Tractor has double clutch with 280 mm diameter with 8F + 2R and 12F + 3R transmission options. Tractor has 1349 kg hydraulic weight lifting capacity with 3 point linkage system. Tractor has 62 liters fuel tank capacity. Here are full specifications of the tractor:

Engine of Deutz Fahr 55

ENGINE

The Deutz Fahr 55 E Agromaxx tractor is powered by a robust SAME 3-cylinder, naturally aspirated diesel engine. This liquid-cooled engine features direct injection and delivers a maximum torque of 198 Nm between 1150 to 1400 ERPM, with a power output in the 55 hp category. The engine boasts a displacement of 3000 CC, with bore and stroke measurements of 105 mm and 115.5 mm respectively. Designed for efficiency, it operates at a rated RPM of 2350 and can reach a maximum RPM of 3000 on the tachometer. The engine is equipped with an independent pump for each cylinder, ensuring reliable performance. Other notable features include a compression ratio of 17:01, a firing order of 1-3-2, and it holds 7.5 liters of engine oil and 11 liters of coolant. The fuel tank capacity is substantial at 62 liters, supporting extended operation periods

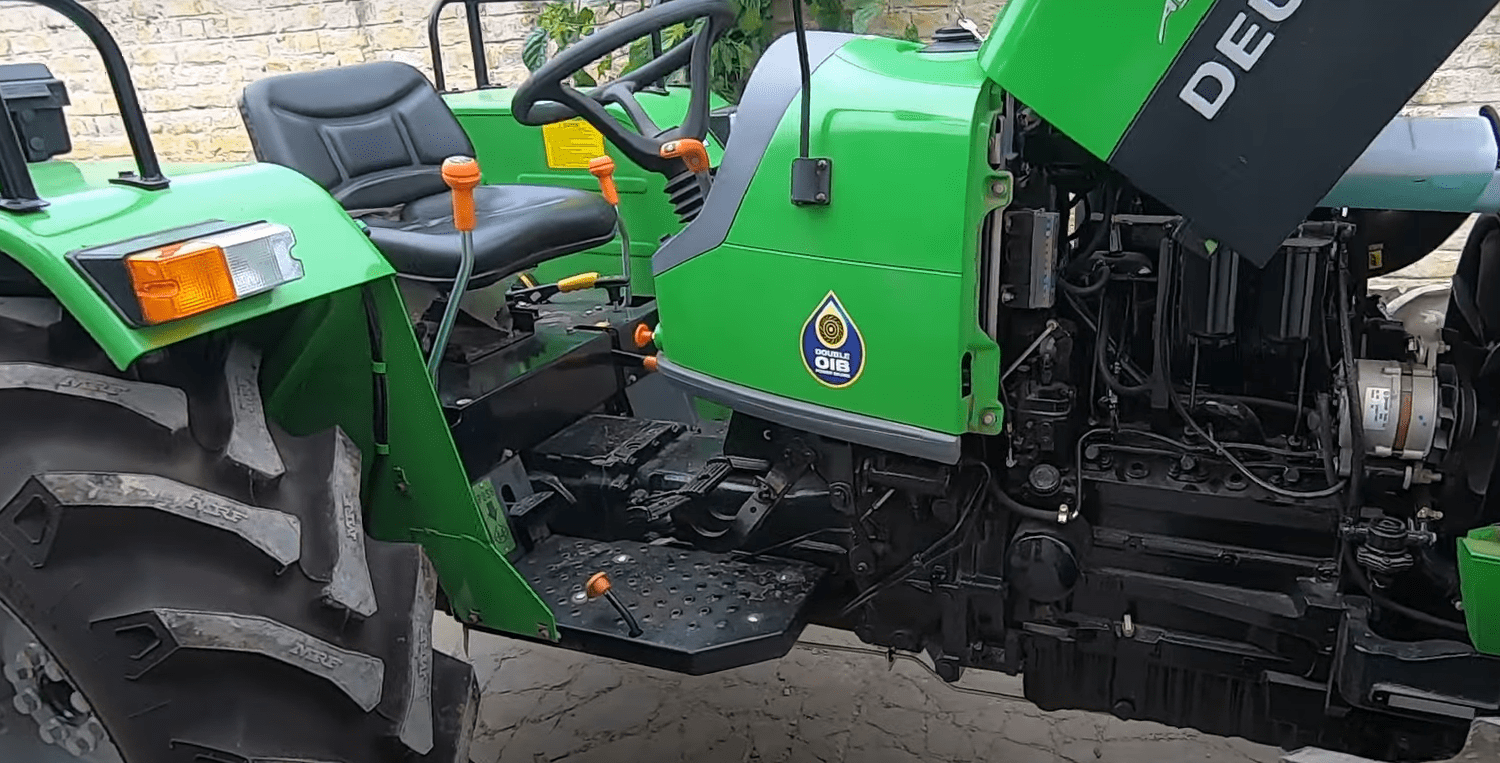

Transmission of Deutz Fahr 55

Transmission

The Deutz Fahr 55 E Agromaxx tractor features a robust transmission system designed for efficiency and durability. It is equipped with a double clutch of 280 mm diameter made from cerametallic material, ensuring reliable performance and longevity. The synchromesh type transmission offers smooth and precise gear shifts, with a standard configuration of 8 forward and 2 reverse gears, and an optional setup providing 12 forward and 3 reverse gears for greater versatility. Additionally, the clutch paddle free play is set at 30 mm, contributing to the tractor’s ease of operation.

Gear speed chart for the tractor

For 8 forwards + 2 reverse transmission system

Gear speeds for 12 forwards + 3 reverse transmission option

NOTE: There are 3 types of transmission speeds in reverse direction i.e. type 1, type 2 & type 3 which are mentioned above.

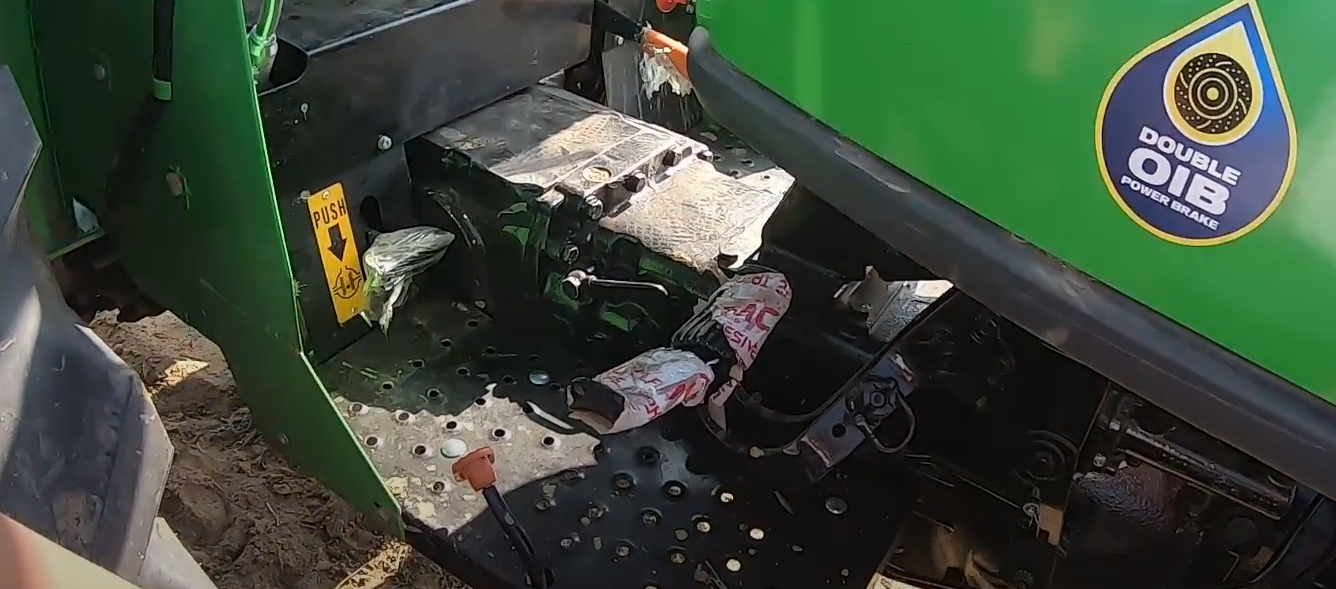

Brakes of Deutz Fahr 55

Brakes

The Deutz Fahr 55 Agromaxx tractor is equipped with hydraulically self-actuated sealed brakes, ensuring reliable performance in various conditions. Each side of the tractor features a single brake disc, contributing to its efficient braking system. The tractor offers a minimum turning radius of 3.48 meters with brakes engaged and 3.99 meters without braking, allowing for precise maneuverability. Additionally, the brake pedal has a free play of 10 mm, providing smooth and responsive control during operation.

Steering system

PTO system

The Deutz-Fahr 55 Agromaxx tractor is equipped with a versatile Power Take-Off (PTO) system that offers a robust 45.68 horsepower for efficient operation. The standard PTO speed is 540 RPM, which operates at 2044 engine RPM, providing reliable power for a range of implements. For added flexibility, the PTO system includes optional speeds of 750 and 1000 RPM, catering to various agricultural tasks. However, it does not feature a reverse PTO speed. This configuration allows the Deutz-Fahr 55 Agromaxx to adapt to different farming needs while maintaining optimal performance.

Hydraulics

The Deutz-Fahr 55 Agromaxx tractor boasts an efficient hydraulic system designed for optimal performance in various agricultural tasks. It features a live auto depth and draft control system, ensuring precise and consistent operation of implements. The tractor’s hydraulic system supports a maximum lifting capacity of 1349 kg through its 3-point linkage, making it well-suited for handling heavy loads. Additionally, the system’s pump delivers a robust output of 31 liters per minute, providing ample hydraulic flow to power a range of attachments and tools effectively.

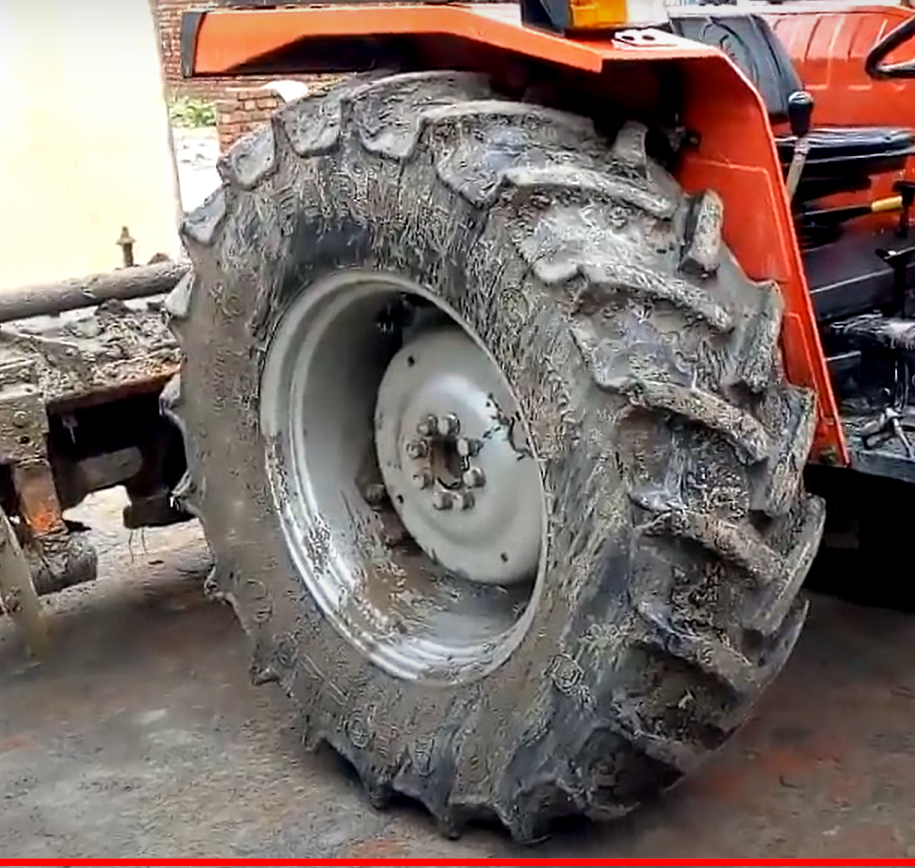

Tyre size and pressure according to situation

Tyres

The Deutz Fahr 55 E Agromaxx tractor features versatile tyre sizes to suit different needs. The optional 6.0016 tyres should be inflated to 32 psi, while the 7.50*16 tyres also require a pressure of 32 psi. For larger 14.9*28 tyres, a lower pressure of 18 psi is recommended, ensuring optimal performance and stability across various field conditions.

Overall Dimensions

Unfortunately there is not so much data available for this field but anyways if any of our visitor wants to share this data with us then please Contact Us through our official page.

Others

Mostly this field is almost same for all Deutz Fahr tractor models.

Lubrication oil type and amount for Deutz Fahr 55 e Agromaxx

Here we have provided the exact amount of lubrication oil and brand type also and unfortunately we didn't find the details about the proper grade of oil. Changing oil according to maintenance chart with proper quantity will provide your tractor a long and trouble free life. However, if you use the recommended brand type oil then you will easily find the grade of these things.

Lubrication chart

Troubleshooting

Here are some common basic problems of Deutz Fahr 55 e Agromaxx with their solution which may happen after a long time or due to bad maintenance:

• Engine not starting or starting with problem:
  • Wrong starting method.
  • Low engine level.
  • Air trapped in fuel lines.
  • Cold weather.
  • Internal blockage in fuel system.
  • Wrong grade of engine oil.
  • Fault in injector.
  • Fault in fuel injection pump.
  • Fault in starter motor.
  • Wrong fuel selection.
• Engine not running properly:
  • Blockage in fuel filter.
  • Blockage in fuel system.
  • Fuel cap breather blockage.
  • Blockage in fuel injector.
  • Fault in injection timing.
  • Fault in fuel injection timing.
  • Low level of engine oil.
• Low power output:
  • Engine is overloaded.
  • Air filter is clogged.
  • Wrong fuel selection.
  • Wrong valve clearance setting.
  • Fuel injectors are not working properly.
  • Fault in fuel injection pump.
  • Leakage in intake and exhaust manifold.
  • Blockage in feed pump.
  • Air trapped in fuel system.
• Engine overheating:
  • Low level of coolant.
  • Fault in thermostat valve.
  • Radiator fins are clogged.
  • Engine overloading.
  • Radiator cap fault.
  • Internal blockage in cooling system.
  • Loose fan belt.
  • Temperature gauge faulty.
• Extremely low temperature:
  • Temperature sensor faulty.
  • Thermostat valve faulty.
• Engine oil temperature:
  • Low level of engine oil.
  • Wrong selection of grade of engine oil.
  • Fault in engine oil pump.
  • Engine oil pressure sensor faulty.
• Engine oil consumption
  • Leakage of engine oil.
  • Selection of wrong engine oil grade.
  • Piston liners wear.
  • Engine oil consumption.

There are more problems which may happen with tractor but here we have mentioned only few. If you are facing any other problem than this and wants to know about the reason then you can comment down below and feel free ask.

Periodic Maintenance chart for Deutz Fahr 55 e Agromaxx:

After every 10 hours:

• Check engine oil level and top up if needed.
• Check coolant level and top up if needed.

After every 50 hours:

• Check fan belt tension.
• Greasing of rear axle.
• Front axle greasing.
• Check brake fluid level.
• Check battery connection & voltage.
• Greasing of 3 point linkage.
• Check all wheels & tyres.

After every 150 hours:

• Do every 50 hours jobs first.
• Check clutch control.
• Cleaning of radiator fins and inspection of leakage.
• Check transmission oil level and top up if needed.
• Check parking brake lever.

After every 350 hours:

• Do every 50 hours jobs first.
• Check braking distance.
• Cleaning of radiator fins.
• Change engine oil and oil filter.
• Change diesel fuel filters.
• Change transmission oil filter.
• Check hydraulic oil pipes.

After every 650 hours:

• Do every 50 and 350 hours jobs first.
• Check engine drive belt tension.
• Adjustment valve clearance and fuel injectors pressure.
• Change filters.
• Cleaning of fuel pre cleaner.
• Check differential lock system.
• Change transmission oil filter.
• Grease safety braking valve with braking system.

After every 1000 hours:

• Do every 50, 350 and 650 hours jobs first.
• Cleaning of cooling system and changing of coolant.
• Check fuel injection pump and calibrate if needed.
• Change air filter element and safety element.
• Bleeding of filters and fuel system with air and water.
• Check stater motor connections.
• Change transmission oil.
• Change power steering (if mechanical then also for it) oil.
