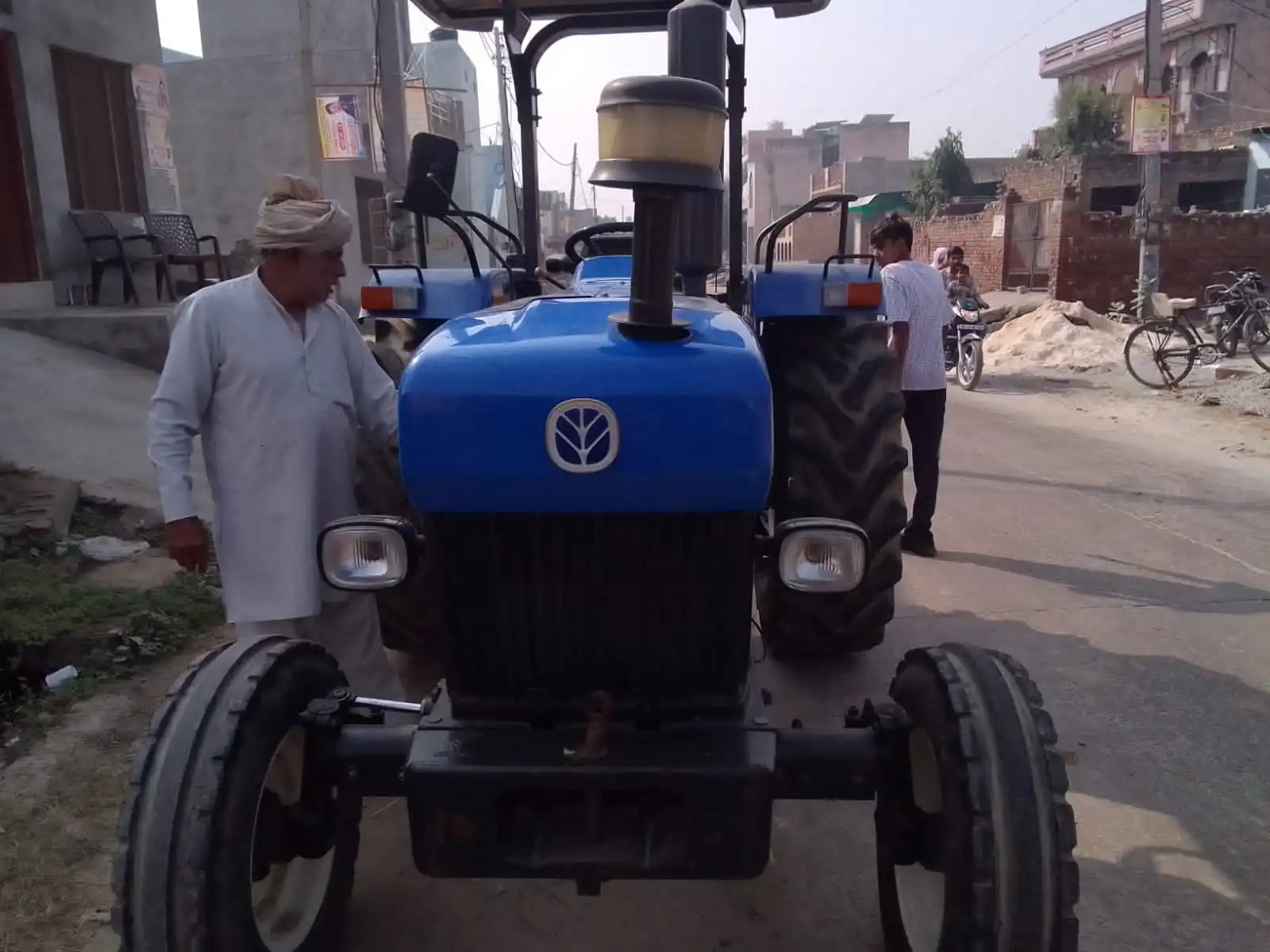

New Holland 3630 TX Special Edition specifications

New Holland 3630 TX Special Edition tractor has turbo charged liquid cooled Iveco FPT S8000 series engine with 2931 cc displacement which can produce about 55 hp at 2300 engine rated rpm. Tractor has double clutch with independent PTO clutch lever. Tractor has 540 standard , Reverse PTO and Ground speed PTO options. Tractor has 1700 kg lift capacity which can be extended to 2000 kg using asist ram. Here are some more features of tractor:

Price for New Holland 3630 TX special edition tractor is Rs 9.80 to 10.5 lakhs in 2023

Engine

Transmission

Gear speeds for 12F + 3R Creeper transmission

Gear speeds for 12F + 3R Creeper transmission ( in kmph ) with 16.9*28 tyre size:

Gear speed of 12F + 3R UG transmission

Here is the gear speed of 12F + 3R UG transmission with 16.9*28 tyre size:

UG transmission provides 12 forward speed and 3 reverse speeds which are suitable with most of implements and applications whereas Creeper transmission provides extremely slow speed in lower gears which can drive super seeder and straw reaper at very high load and rough conditions. Also these transmission speeds are very useful with different agriculture implements with different speeds to work.

Brakes

Steering

PTO

Ground speed PTO with 12 + 3 UG transmission:

Ground speed PTO with 12 + 3 Creeper transmission

These PTO speed charts are very helpful during use of different PTO implements to get maximum output with low fuel consumption.

Hydraulics

Tires

Air pressure in front tyre is same for all conditions whereas air pressure in rear wheel changes according to applications. Air pressure in rear wheel is same for 14.9*28 and 16.9*28 tyre size.

Overall dimensions

These weight and dimensions are applicable on tractor when tractor has front tyre size 7.50*16 and rear tyre size 16.9*28.

Others

New Holland 3630 TX Special Edition is one the most selling tractor from New Holland especially in Haryana and Punjab.

Instrument Cluster

Here is the full detail of instrument cluster of New Holland TX 3630 special edition tractor:

• Battery charging indicator which indicates that battery is charging or not when engine is on.
• Engine oil pressure indicator which indicates the oil pressure when engine is on.
• Headlight indicator which indicates that headlight is at high beam or at low beam.
• Air cleaner clog light indicator.
• Temperature gauge which gives us information about temperature of engine during running condition or at idle.
• Engine Tachometer :- with the highest RPM 2800 and 540 PTO RPM at 2000 RPM.
• Digital hour meter.

Oil and Lubrication amount for tractor

NOTE : Please use this oil & grease type during periodic maintenance schedule. Always fill recommended amount only as shown above, if amount of oil will be less or more then it may damage tractor’s parts .

Pressure of radiator cap is 0.89 bar (12.90 psi). If this pressure will be more then it will cause over heating in engine because it will not allow gases to escape.

Before starting tractor in morning please follow these points:

• Check whole properly i.e. any source of oil or fuel leakage.
• Air pressure in all wheels for required purpose.
• Working of all electrical devices such instrument cluster , head lamps , other lights and horn etc.
• Level of oil in parts of tractor.
• Level of coolant in radiator.
• There should be enough fuel for journey.
• Greasing all points should be proper.
• After starting tractor leave it at idle RPM at least for one minute because in turbo charge tractor it takes some time to lubricate all parts and turbo properly. This practice will ensure less wear and tear.
• Don’t rev engine at no load.

After first 50 hours:

• Change engine oil.
• Change engine oil filters.
• Change fuel filters.
• Change hydraulic oil filter.

Every 10 hours after regular use:

• Check engine oil level.
• Check radiator coolant level.
• Clean air pre cleaner.
• Check hydraulic steering oil level.
• Check water in fuel filters.

After every 50 hours of use of tractor:

• Check clutch paddle free play.
• Check brake paddle free play.
• Check parking brake lock working.
• Air pressure in tyre.
• Check free play in fan and alternator belt.
• Check battery condition and charging.
• Check front axle oil level.

After first 300 hours:

• Change 4 wheel drive front axle differential and hub fluid.

After every 300 hours:

• Clean air pre cleaner.
• Change fuel filters.
• Clean fuel feed pump filter.
• Change hydrostatic steering oil.
• Change engine oil.
• Change engine oil filters.
• Check transmission and hydraulic oil level.
• Change hydraulic oil filter.
• Change oil strainer.

After every 600 hours:

• Check and adjust valve clearance ( 0.30 mm for intake and exhaust in cold ).
• Clean transmission vapour breather.
• Clean front wheel bearings and lubricate them again.
• Check and adjust front wheel alignment.
• Change transmission and hydraulic oil and use only recommended.

After every 1200 hours:

• Change transmission and hydraulic oil.
• Change final drive oil.
• Change radiator fluid.
• Change steering oil from oil reservoir.
• Change 4 WD front differential and hub oil.
• Clean fuel tank.

Correct implement Selection:

NOTE :- With the condition of soil and weight of implement recommended gears may change.

Identification of problem and troubleshooting:

• Engine not starting or starts with difficulty.
  • Tractor is in the gear.
  • Low fuel level.
  • Blockage in fuel line.
  • Air in fuel system.
  • Faulty fuel injectors.
• Engine is not achieving maximum power.
  • Engine overloaded.
  • Dirty air cleaner.
  • Incorrect valve clearance.
  • Clogged fuel filters.
  • Low temperature for combustion in engine.
  • Throttle control system is not working properly.
  • Cut in turbocharger pipes.
• Abnormal engine knocking.
  • Incorrect valve clearance.
  • Engine overheating.
  • Engine oil level low.
• Low operating temperature for engine.
  • Thermostat Valve malfunction.
  • Faulty temperature indicator.
• Engine overheating.
  • Radiator cap is not maintaining proper pressure.
  • Radiator fins are clogged.
  • Low engine oil.
  • Coolant level low.
  • Fan belt slippage or worn out.
  • Internal blockage in cooling system.
  • Faulty temperature gauge.
• High fuel consumption.
  • Dirty air cleaner.
  • Engine overloaded.
  • Wrong valve clearance.
  • Faulty injector nozzles.
  • Jammed braking system.
