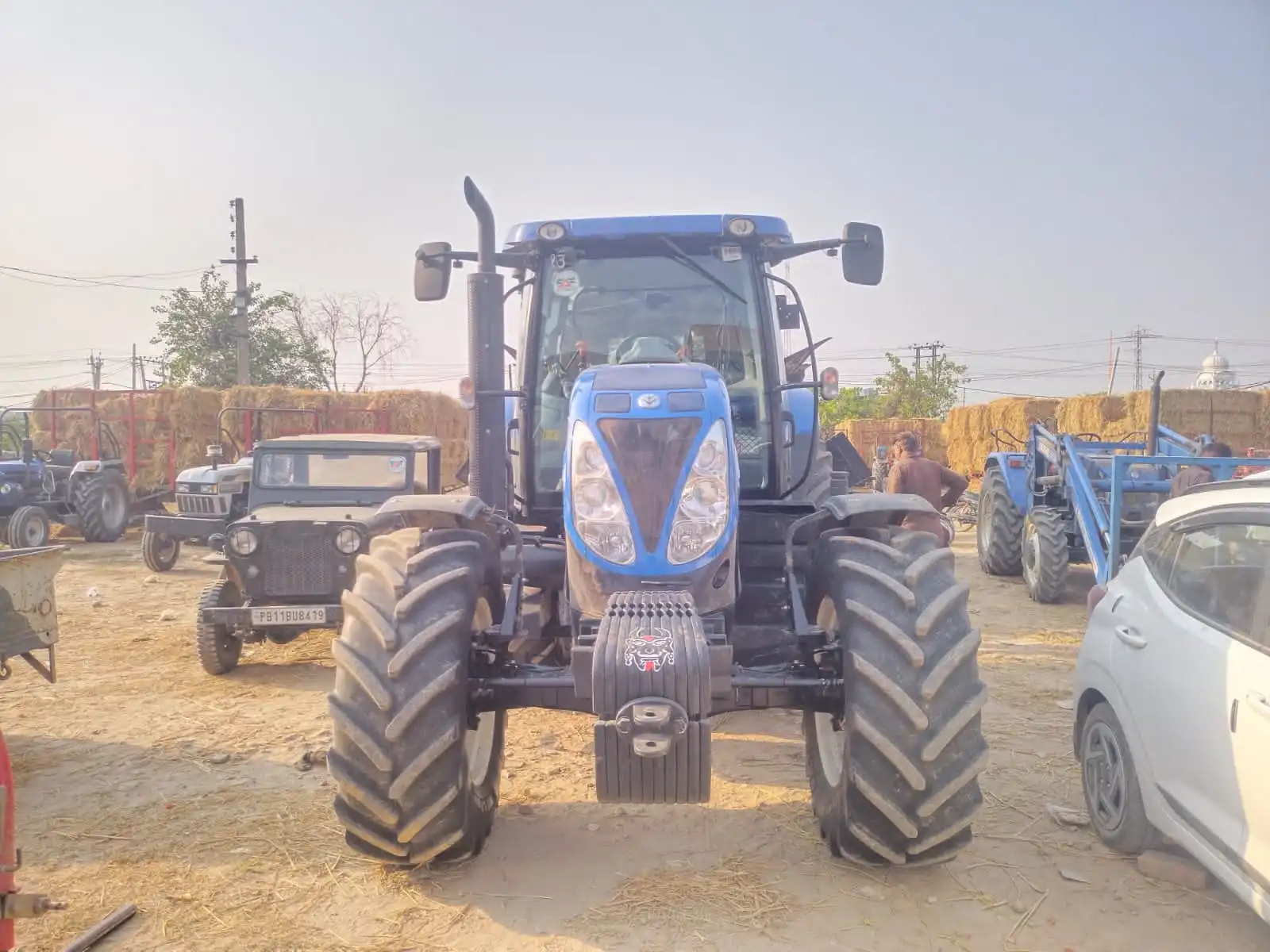

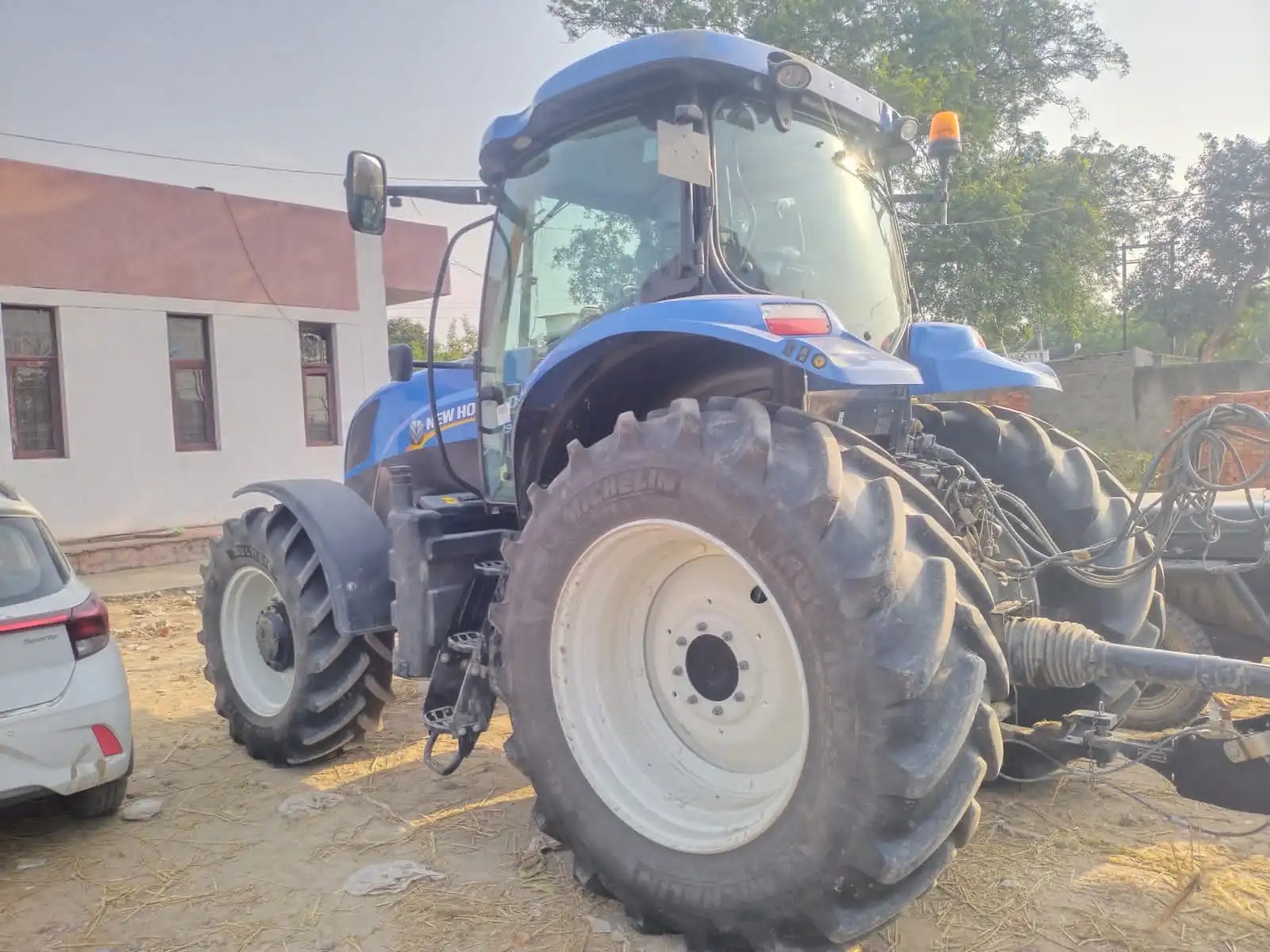

New Holland T6090 tractor has 6 cylinder turbo charged engine with common rail direct injection system. Tractor can produce maximum 201 hp at engine power management system while without engine power management system tractor can produce 174 hp. Engine power management system was introduced in New Holland in which tractor produces more hp and torque according to load on transmission, hydraulics and PTO. Intellishift transmission system is equipped in tractor which consist of 19 forwards and 6 reverse gear option and 29 forwards and 12 reverse gear options. Tractor has rear weight lifting capacity of 8257 kg at rear ball points while front weight lifting capacity of tractor is 3568 kg. Tractor has 285 liters fuel tank capacity. Here are some more specifications of the tractor:
Engine
| Specifications | Data |
| 1. Engine make | CNH New Holland |
| 2. Engine type | 6 cylinder 4 stroke Turbo Charged Liquid cooled Diesel engine (also supports Bio diesel) |
| 3. Maximum torque | 710 Nm at 1400 ERPM (without engine power management) 778 Nm at 1600 ERPM (with engine power management) |
| 4. Power in HP at engine rated RPM | 165 hp without engine power management system 190 hp with engine power management system |
| 5. Maximum power in HP | 174 hp without engine power management system 201 hp with engine power management system |
| 6. Bore*stroke | 104*132 mm |
| 7. Displacement | 6728 CC |
| 8. Engine rated RPM | 2200 |
| 9. Fuel injection type | Common rail direct injection system |
| 10. Maximum engine RPM in tachometer | 2700 RPM |
| 11. SFC | No data available |
| 11. Idle RPM | No data available |
| 12. Compression ratio | No data available |
| 13. Firing order | No data available |
| 14. Maximum idle RPM | No data available |
| 15, Air cleaner type | No data available |
The New Holland T6090 tractor boasts a robust engine crafted by CNH New Holland. This 6-cylinder, 4-stroke, turbocharged, and liquid-cooled diesel engine is not only powerful but also versatile, supporting the use of biodiesel. With a displacement of 6728 CC, it delivers a maximum torque of 710 Nm at 1400 ERPM (without engine power management) and an impressive 778 Nm at 1600 ERPM (with engine power management). In terms of horsepower, it can deliver 165 HP at engine rated RPM without the engine power management system, and a remarkable 190 HP with it. At its peak performance, it can reach a maximum power output of 174 HP without engine power management, and a staggering 201 HP with the system activated. The engine operates with a bore and stroke of 104×132 mm and features a common rail direct injection system, ensuring efficient and precise fuel delivery. With an engine rated RPM of 2200 and a tachometer displaying a maximum engine RPM of 3000, the New Holland T6090’s engine is a reliable workhorse for various agricultural tasks.
Unfortunately we don’t have so much data about the engine of this tractor, there are two special things about this tractor 1st one is best power to weight ratio i.e. this tractor can produce maximum 201 hp but weighs about an engine with 125 hp and second interesting thing about this is that its service interval is 600 hours which is one of highest in this hp segment and company has tested this engine about 27000 hours in two continents with conventional oils then company found it suitable to service at 600 hours.
Transmission
| Specifications | Data |
| 1. Clutch type & size | No data available |
| 2. Transmission type | Range command (semi powershift) and Power command (fully powershift) (optional) |
| 3. Number of gears | 19 forwards + 6 reverse (normal variant) 29 forwards + 12 reverse (creeper variant) |
| 4. Clutch paddle free play | No data available |
Unfortunately we don’t have data about tractor’s gear speed. If anyone of our visitor have this data and wants to share with us then please Contact Us.
Brakes
| Specifications | Data |
| 1. Brake type | Exhaust brakes (with air braking system) Pneumatic brakes (optional) |
| 2. Minimum turning radius with brakes | No data available |
| 3. Minimum turning radius without brakes | No data available |
| 4. Brake paddle free play | No data available |
Steering system
| Specifications | Data |
| 1. Mechanical steering | Option not available in high hp tractor |
| 2. Power steering | Available (standard) |
| 3. Oil capacity for power steering | No data available |
| 4. Oil flow capacity of power steering pump | No data available |
PTO
| Specifications | Data |
| 1. PTO HP | No data available |
| 2. PTO speeds standard | Available 540 PTO RPM at 1969 engine RPM |
| 3. PTO speeds Reverse | No data available |
| 4. PTO speeds Optional | 1000 PTO RPM at 2120 engine RPM |
| 5. PTO speeds Economy | 540 economy PTO RPM at 1546 engine RPM |
Auto PTO management system is also equipped in this tractor in which PTO shaft rotates after sensing the position of hydraulic links. Apart from this front PTO (1000 RPM) is also optional in this tractor according to demand of operator.
Hydraulic
| Specifications | Data |
| 1. Type | Live auto depth and draft control and many more |
| 2. Maximum lift capacity at ball ends | 8257 kg |
| 3. Front maximum weight lifting capacity | 3568 kg |
Apart from this there are many other features available in hydraulics of this tractor.
Tyre size
| Tyer size | Pressure in field | Pressure on road |
| No data available | No data available | No data available |
| Rear 650/65R42 | No data available | No data available |
Overall dimensions
| Dimensions | Measurements |
| 1. Wheel base | 2734 mm (with standard axle) 2789 mm (with Terraglide suspended axle) |
| 2, Overall length | 5347 mm |
| 3. Minimum width | 2384 mm |
| 4. Overall height | 3140 mm |
| 5. Ground clearance | 586 mm |
| 6. Minimum unballasted weight of tractor | 5650 kg (with standard axle) 5950 kg (with Terraglide suspended axle) |
Others
| Specifications | Data |
| 1. Battery | No data available |
| 2. Alternator | No data available |
| 3. Fuel tank | 285 liters |
Other models:
- New Holland 5630 TX Plus full specifications + Gear speeds
- New Holland 5620 CRDI TX plus full specifications & price
- New Holland 3600-2 TX full specification & Gear speed
- New Holland 5620 CRDI TX plus full specifications & price
- Zetor 5511 tractor full specifications & maintenance
- Zetor 8111 tractor full specifications
What is engine power management system in New Holland t6090 tractor?
Engine power management increase the amount of fuel according to load on transmission, PTO and hydraulics and with this system tractor can produce maximum 201 hp.
What is the fuel tank capacity of New Holland t6090 tractor?
Tractor has 285 liters fuel tank capacity.
What is the service interval of engine of this tractor?
Service interval of New Holland t6090 tractor is 600 hours and company has tested this tractor about 27000 hours then announced this interval
What is the weight lift capacity of New Holland t6090 tractor?
Maximum rear weight lifting capacity of this tractor is 8257 kg while front maximum weight lifting capacity is 3568 kg.
