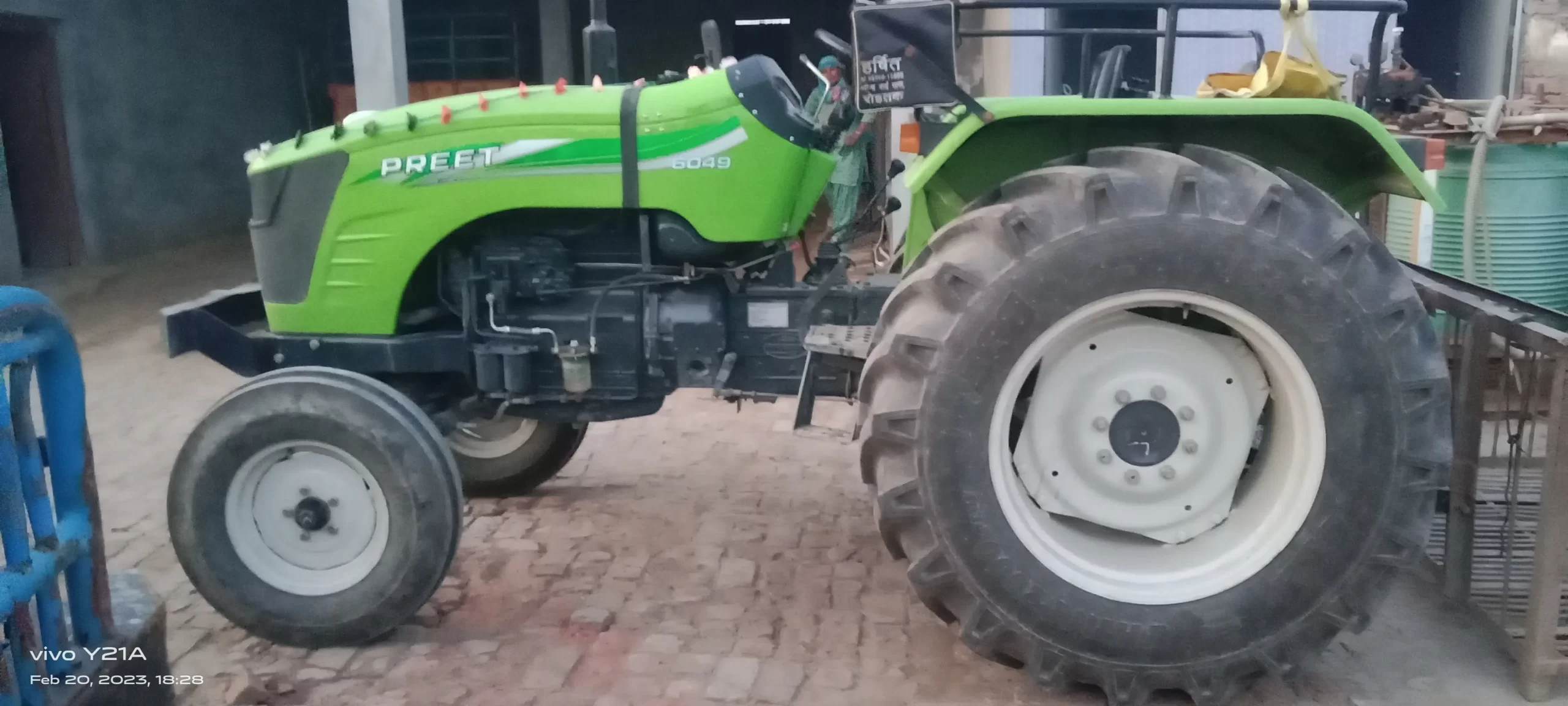

Preet 6049 tractor has 4 cylinder naturally aspirated liquid cooled engine with 4088 CC displacement which can produce about 60 hp at 2200 engine rated RPM. Tractor has 1800 kg weight lifting capacity with 3 point linkage system. Tractor has 67 liters fuel tank capacity which increases time intervals for refueling. Tractor has both manual & power steering system options according to operator’s demand. Here are some more specifications of tractor:
Engine
| Specifications | Data |
|---|---|
| 1. Engine Make | No data available |
| 2. Engine Type |
|
| 3. Max Torque | 245 +- 5% Nm |
| 4. HP | 60 hp category |
| 5. Bore*Stroke (MM) | 105*118 mm |
| 6. Displacement | 4088 CC |
| 7. Engine rated RPM | 2200 |
| 8. Pump | Inline Bosch |
| 9. Max engine RPM in tachometer | 3000 |
| 10. SFC | No data available |
| 11. Idle RPM | 650 +- 50 |
| 12. Max. RPM at no load | 2350 +-100 |
| 13. Firing order | 1-3-4-2 |
| 14. Compression ratio | 18.5+-1:1 |
| 15. Fuel injections timing | 8°+-1° BTDC |
Transmission
| Specifications | Data |
|---|---|
| 1. Clutch type & size | Single with 280 mm diameter (standard) Dual with 280 mm dia (optional) |
| 2. Transmission | 8F+2R |
| 3. Clutch paddle free play | 20-25 mm |
| 4. Transmission type | Sliding mesh |
Gear speed of tractor
| Gear | Speed |
|---|---|
| L1 | 2.82 |
| L2 | 3.48 |
| L3 | 5.75 |
| L4 | 9.10 |
| H1 | 11.11 |
| H2 | 13.73 |
| H3 | 22.99 |
| H4 | 35.86 |
| L-R | 3.77 |
| H-R | 15.58 |
Brakes
| Specifications | Data |
|---|---|
| 1. Type | Multidisc mechanical brakes (standard) Wet brakes (optional) |
| 2. Minimum turning diameter with brakes | No data available |
| 3. Minimum turning diameter without brakes | 4.1 meter |
| 4. Brake paddle free play | 35 to 40 mm |
Steering
| Specifications | Data |
|---|---|
| 1. Mechanical | Available (standard) |
| 2. Power | Available (optional) |
| 3. Oil capacity (power steering) | 2 liters |
| 4. Oil capacity (mechanical steering) | 0.5 liter |
PTO
| Specifications | Data |
|---|---|
| 1. PTO HP @ Rated RPM | No data available |
| 2. PTO speeds-Standard | 540 PTO CR (No data available about engine RPM) |
| 3. PTO speeds – Economy | Not available |
| 4. PTO speeds – Reverse | Not available |
| 5. PTO speeds – Ground speed | Not available |
Hydraulics
| Specifications | Data |
|---|---|
| 1. Type | Live Auto depth and draft control |
| 2. Weight lifting capacity | 1500 kg |
Tyres
| Tyre size | ||
|---|---|---|
| In field | In haulage | |
| 7.50*16 | ||
| 14.9*28 16.9*28 | 16 psi | 18 psi |
Overall dimensions
| Specifications | Data |
|---|---|
| 1. Wheel base | 2225 mm |
| 2. Overall length | 3860 mm |
| 3. Overall width | 1920 mm |
| 4. Overall height | 2280 mm |
| 5. MIN. Ground clearance | 420 mm |
| 6. Weight of tractor (without ballast) | No data available |
Other
| Specifications | Data |
|---|---|
| 1. Battery | 12 V, 88 Ah |
| 2. Alternator | 35/42 Amps. |
| 3. Fuel tank capacity | 67 Liters |
Oil & Lubrication
| Parts | Amount | Type |
|---|---|---|
| Engine oil | 9 liters | 20W40 |
| Air cleaner | 1 liter | 20W40 |
| Transmission/Hydraulics | 55 liters | TRACTELF (for wet brakes) EP-80 (for dry brakes) |
| Power steering | 2 liters | 20W40 |
| Mechanical | 0.5 liter | EP-140 |
| Coolant | 11 | No data available |
| Grease | As required | No data available |
There is no data available for implement selection.
Troubleshooting
Here are some basic problems which may happen with tractor after a long time of use or lack of maintenance and their possible reasons:
- Engine starting problem:
- No fuel in tank.
- Air in fuel line.
- Fault in injection pump.
- Battery is not charged.
- Low power output:
- Fault in fuel supply.
- Air cleaner choked.
- Fault in fuel injection nozzles.
- Engine overheating:
- Fault in thermostat.
- Loose fan belt.
- Radiator fins are clogged.
- Engine oil filter is blocked.
- Low engine oil pressure:
- Engine oil level is low.
- There is leakage of engine oil.
- Selection of wrong grade engine oil.
Periodic Maintenance chart for Preet 6049 tractor
| Jobs | Hours every | |||
|---|---|---|---|---|
| 10 | 50 | 70 | 100 | |
| Cleaning of whole tractor | ✓ | |||
| Check & tight nuts | ✓ | |||
| Check water level in radiator | ✓ | |||
| Check air cleaner element | ✓ | |||
| Lubrication of all greasing points | ✓ | |||
| Check leakage of engine oil | ✓ | |||
| Check air pressure in tyres | ✓ | |||
| Clean suction strainer | ✓ | |||
| Change air cleaner oil if applicable | ✓ | |||
| Check battery electrolyte level & clean terminals | ✓ | |||
| Clean feed pump | ✓ | |||
| Drain out water fuel filters | ✓ | |||
| Check fan belt condition | ✓ | |||
| Check free play in clutch & brake paddle | ✓ | |||
| If dry air cleaner element then clean element | ✓ | |||
| Check oil level in engine & transmission | ✓ | |||
| Lubricate front axle center pins | ✓ | |||
| Lubricate king pins & lift rods | ✓ | |||
| Clean suction strainer | ✓ | |||
| Jobs | Hours every | |||
|---|---|---|---|---|
| 250 | 500 | 750 | 1000 | |
| Flush crankcase | ✓ | |||
| Change engine oil & oil filter | ✓ | |||
| Clean radiator fins | ✓ | |||
| Change transmission oil | ✓ | |||
| Clean fuel tank | ✓ | |||
| Change primary fuel filters | ✓ | |||
| Interchange front tyres to avoid improper wear | ✓ | |||
| Check free play in tapper bearing of front wheel | ✓ | |||
| Flush cooling system with clean water | ✓ | |||
| Change paper element of air cleaner | ✓ | |||
| Change strainer | ✓ | |||
| Change secondary fuel filter | ✓ | |||
| Clean front wheel hub and re lubricate | ✓ | |||
| Remove carbon from cylinder and cylinder head | ✓ | |||
| Grind valve if necessary | ✓ | |||
| Check play in water pump bearing | ✓ | |||
| Servicing of alternator, starter and battery | ✓ | |||
| Adjustment of valve clearance | ✓ | |||
| Servicing of nozzles | ✓ | |||
