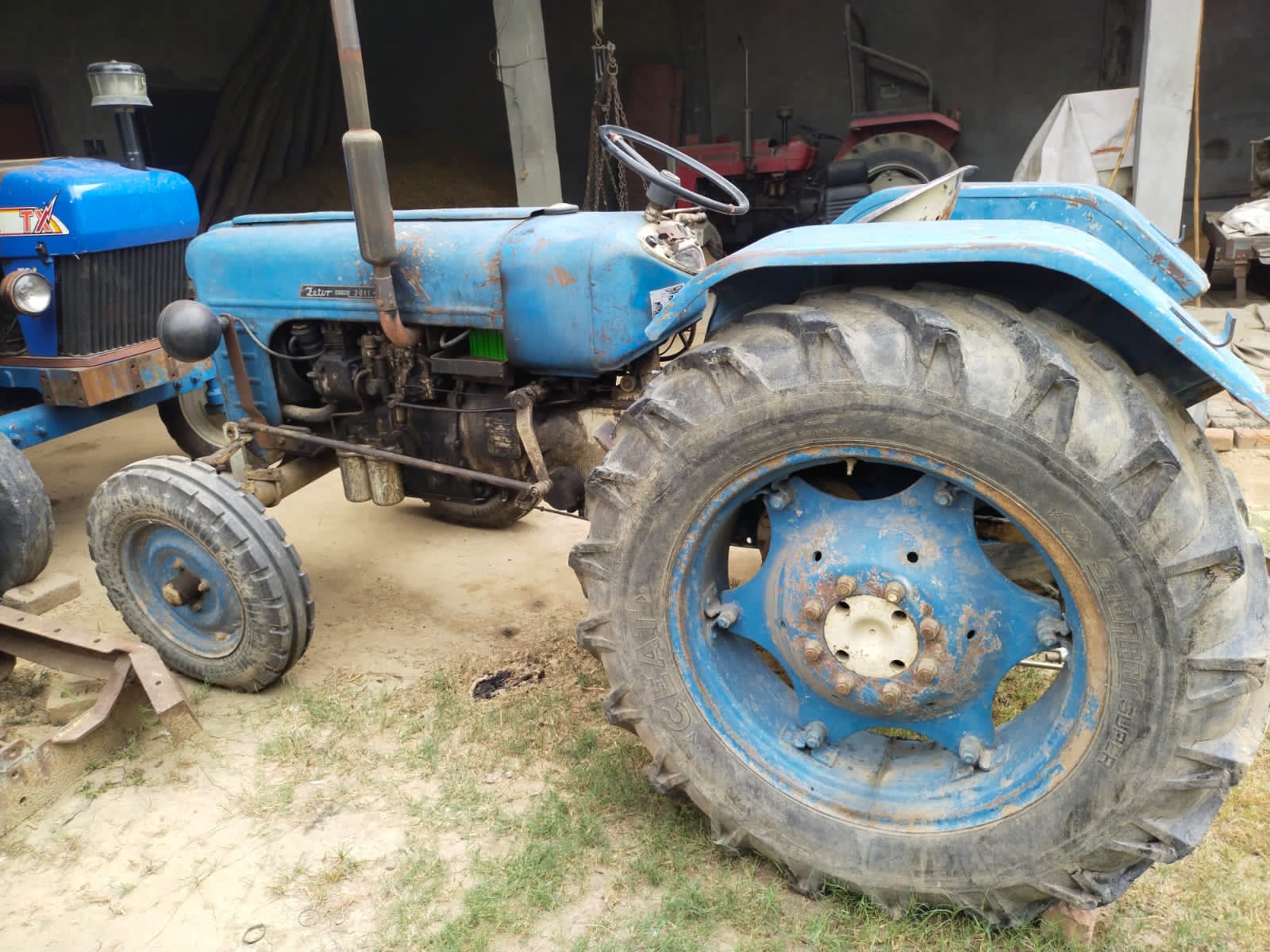

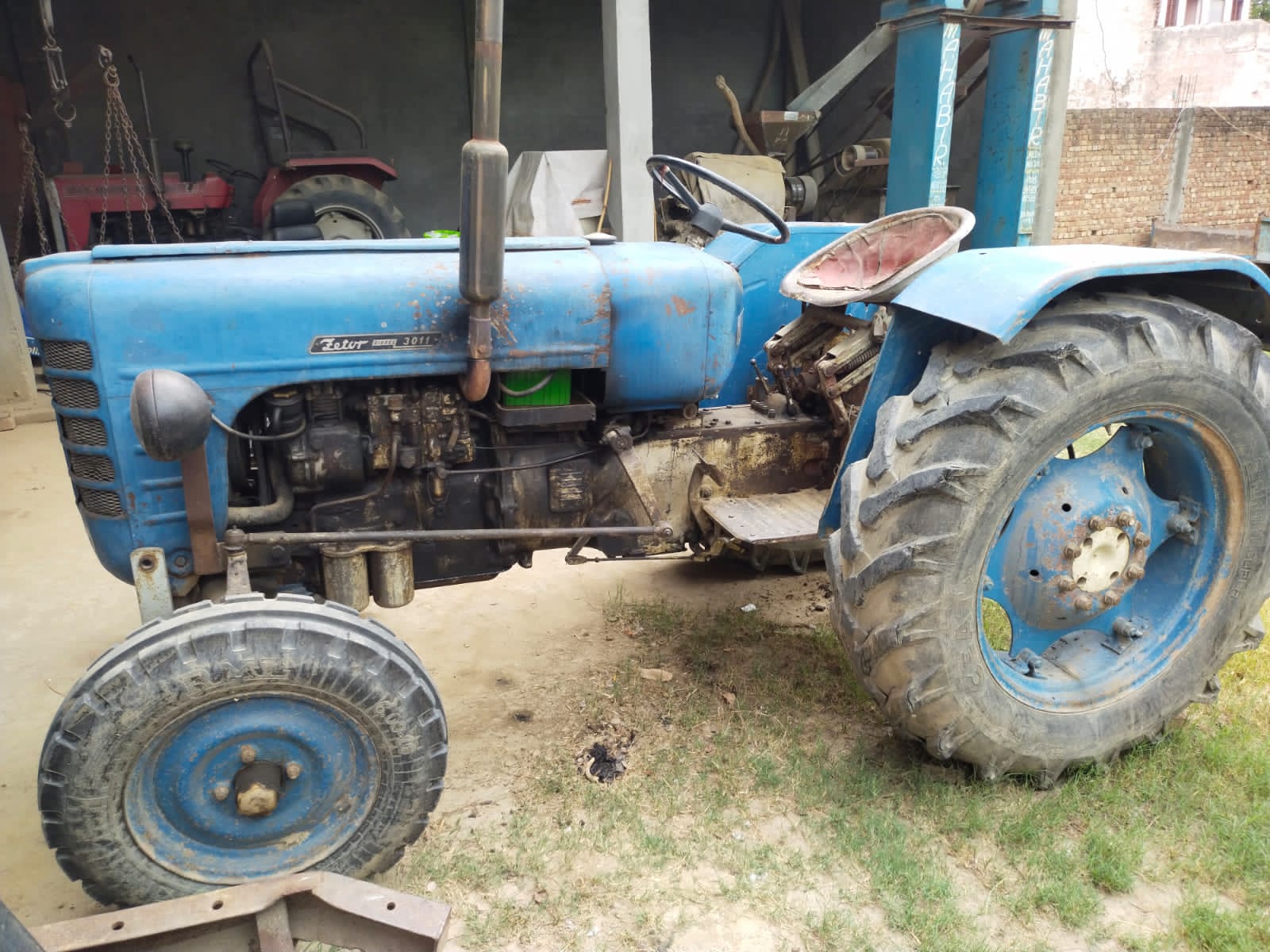

Zetor Diesel 3011 tractor full specifications

Zetor Diesel 3011 tractor was one of the most advance tractor of its time and providing many features which were ahead of its time and this tractor was one of the early models of the company. Tractor has 3 cylinder naturally aspirated liquid engine with 2340 CC displacement which can produce about 35 horse power category (39 hp) at 2000 engine rated RPM. Tractor has dual clutch system with 10 forwards + 2 reverse gear options and apart from this tractor has many options in PTO and hydraulic lifts. Top model of tractor has suspension in front axle and safety cabin additional features while in base model these features were not provided which were basically dependent on the geography and economy of a country. Here are the full features of tractor:

Engine

Zetor diesel 3011 tractor’s engine is well known for outstanding performance, long life and low maintenance. In this engine special choke system is provided which helps to start engine very easily in extreme cold weather conditions and the process to use this choke was very simple i.e. pull full hand throttle and then press choke button which was given front side of fuel injection pump. Then start the starter motor and when engine is started then choke button comes back to its initial position automatically. Apart from that there is separate chamber for mobile in fuel injection pump of tractor in which 0.16 liter of mobil oil has to be poured. This ensures long life of fuel injection pump i.e. in other tractors common oil is used for engine and injection pump and if engine oil is not changed for long intervals then oil losses its ability to lubricate and viscosity then if that oil is transferred in injection pump then it drastically affects the life of fuel injection pump but this is not so in case of Zetor diesel 3011 tractor’s engine.

Transmission

Fun fact about Zetor tractor in India:

Zetor diesel 3011 tractor’s transmission provides many different speeds which are very helpful in all types agriculture applications as well as road transport. In India these tractors were later produced under HMT company which are very successful on super seeder for sowing seeds while many other tractors of other companies failed to provide low speed to operate super seeder and companies have to relaunch them with high-low-medium transmission but this is not so in case Zetor tractors.

Here are full specifications of transmission speeds of this tractor:

Brakes

Steering system

PTO speeds and other specifications

Apart from this tractor has multiple ground speeds which are mentioned below:

Ground PTO speeds:

Note: These speeds are at engine rated RPM which is 2000 RPM.

Belt pulley speeds

Special belt pulley can be attached with rear PTO shaft of tractor for some type of agricultural applications.

Diameter of belt is 250 mm for Zetor diesel 3011 tractor.

This is very useful when farmers use their tractor at multiple belt speed equipment.

Hydraulic

In this tractor there are many different hydraulic lift controlling options according to farmers need and demand.

Tyre size and pressure according to condition

Exact tyre pressure plays a vital role in overall performance of tractor and fuel consumption. Here is some information about exact tyre pressure according to tyre size and ground conditions:

A special type of cultivation rear tyre was also provided with size 9*32.

Overall dimensions

Others

More models:

• HMT 5911 full specifications and features
• HMT 2511 tractor full specifications
• Zetor 5511 tractor full specifications & maintenance
• Zetor 8011 full specification & gear chart
• Zetor 8111 tractor full specifications

Lubrication oil type and amount:

Unfortunately there is not data about implement selection for the tractor.

Troubleshooting the tractor:

Here are some basic problem and their possible reasons which may occur due to lack of proper maintenance or after a very long time of use of tractor:

• Fuel pump is not supplying diesel:
  • Fuel cock is at closed position.
  • Air trapped in fuel system.
  • Fuel filters are contaminated.
  • Blockage in fuel lines.
• The engine is running irregularly:
  • Air trapped in fuel system.
  • Some nuts between injection pump and injectors are tightened insufficiently (tight them at specific torque valve).
  • Injector or nozzles are choked.
  • Wrong adjustment of injectors.
  • Wrong fuel injection timing.
  • Wear in piston rings.
  • Wrong adjustment of valve clearance.
  • Head gasket leakage.
  • Loose head bolts.
• Engine overheating:
  • Water level is very low in radiator.
  • V belt or Radiator fan belt is very loose.
  • Internal blockage of radiator.
• Hydraulic brakes are not working properly:
  • Low level of brake fluid.
  • Air trapped in braking lines.

Here is some information about periodic maintenance chart of the tractor:

Periodic maintenance chart for Zetor diesel 3011 tractor:

Apart from this after 1 year of use clean hydraulic oil strainer.
