John Deere 5405 CRDI tractor full specifications

John Deere 5405 CRDI tractor has 3 cylinder turbocharged liquid cooled engine with 2900 CC displacement which can produce about 62 hp 2100 engine rated RPM in standard mode and 57 hp at 2100 engine rated RPM in fuel saving mode. Tractor has dual dry clutch (standard) and wet clutch optional with 3 types of transmission system. Tractor has maximum 2500 kg weight lifting capacity. Tractor has 74 litres fuel tank capacity in open operator type variant. Tractor is available in 2 wheel drive and 4 wheel drive variant in the Indian tractor market. Here are some more specifications of tractor:

Price for John Deere 5405 CRDI

• Price for John Deere 5405 Common Rail Direct Injection 2 wheel drive model is 12 lakh to 13.10 lakh.
• Price for John Deere 5405 Common Rail Direct Injection 4 wheel drive model is 14 lakh to 14.90 lakh.

Note: These may vary from state to state and dealer to dealer, Prices of this tractor is in year 2023.

Engine

The John Deere 5405 Crdi tractor engine is a powerful and efficient machine designed for optimal performance. Manufactured by John Deere, the engine boasts a 3-cylinder, 4-stroke design, incorporating turbocharging and liquid cooling systems. It operates on common rail direct injection technology, ensuring precise fuel delivery and improved fuel efficiency. With a maximum torque of 211 Nm at the rated speed and a horsepower of 62 at the flywheel, this engine delivers exceptional power. Its bore*stroke measures 106.5*110 mm, resulting in an exact displacement of 2939.71 CC. The engine’s rated RPM is 2100, while the tachometer indicates a maximum engine RPM of 3000. Although specific data regarding SFC (Specific Fuel Consumption) is unavailable, this engine is known for its economical fuel usage. It has an idle RPM range of 850 -50/+25 and a maximum idle RPM of 2200 +50/-25. The compression ratio stands at 16.9:1, further enhancing its performance. The working RPM range spans from 900 to 2100, ensuring optimal operational efficiency. Valve clearances are set at 0.36 mm for the inlet valve and 0.46 mm for the exhaust valve, both measured in cold conditions. The John Deere 5405 Crdi tractor engine is a reliable and capable powerhouse, suitable for various agricultural applications.

Transmission

This tractor is equipped with a dual clutch system, with each clutch having a diameter of 280 mm. The transmission options include a standard 9F + 3R configuration, which can be enhanced with an optional creeper for added versatility. Another optional transmission is the 12F + 4R, offering even more gears for specific needs. The clutch paddle free play is set between 25 to 28 mm, ensuring smooth engagement. Overall, the transmission type is Syncshuttle, providing efficient and reliable performance.

Power reverser is the another option in the tractor’s transmission and gear speed for that is here:

Gear speed for Power Reverser model

In this tractor model there different transmission speeds for north India and south India and here are gear speed for both the regions:

Gear speed for 9F + 3R Creeper transmission for North & South India

Gear speed for 12F + 4R transmission

NOTE: These are applicable for both 2 wheel drive and 4 wheel drive variant models.

Brakes

Steering

PTO

Hydraulics

Tyre size & pressure according to conditions

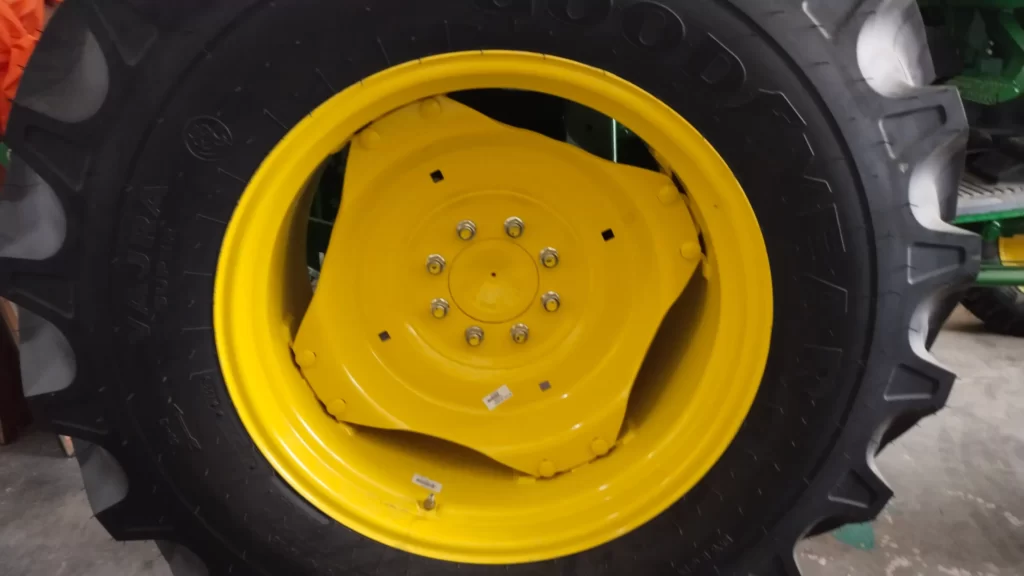

When it comes to the John Deere tractor’s tires, proper inflation is essential for optimal performance in various conditions. The front tires, such as the 6.50*20 with 8PR and F2 thread or the 11.2*24 with 8PR and R1 thread, require different pressures depending on the load. Without heavy loads, a pressure of 20 psi is recommended, while with ballast or heavy equipment, the pressure should be set at 12 psi for the 6.5020 tire and 26 psi for the 11.2*24 tire. On the other hand, the rear tire, specifically the 16.9*30 with 12 PR and R1 thread, should be inflated to 14 psi without heavy loads and 19 psi with ballast or heavy equipment. Following these recommended tire sizes and pressures according to the conditions ensures optimal traction, stability, and longevity for the John Deere tractor, allowing farmers to work efficiently and effectively in diverse farming environments.

Overall dimensions

Others

Here are some specifications of Lubrication oil type and amount for the tractor:

Oil & Lubrications for John Deere 5310 CRDI

Here are full detail of tractor’s instrument cluster:

• Malfunction indicator.
• Reverse PTO indicator.
• Rear PTO engage indicator.
• Air cleaner clog indicator.
• Left & right turn indicator lights.
• Engine basic.
• Operator alert.
• High beam indicator.
• Telimatics disable indicator.
• Front wheel drive engage indicator.
• Rock shaft QRL indicator.
• Transmission neutral indicator.
• NCD indicator.
• System charging indicator.
• Parking brake indicator.
• Water in fuel indicator.
• Transmission parking lock indicator.
• Fuel gauge.
• Speed indicator.
• Service reminder.
• Hour meter.
• Engine temperature meter.

Water ballasting

To avoid wheel slippage you can add extra cast weigh to the tractor (each plate of 48 kg) to rear wheels.

However, water ballasting is the another best way to avoid wheel slippage but before doing water ballasting there are some point on which you should pay attention:

• There should be 75% water in each tyre and 25% air which best ratio to avoid abnormal pull & push in tyres and provides tractor good traction.
• In case of extreme cold situation (temperature less than 0°C) mix Calcium carbide in water in such a way that there should be 400 gram of CC in 1 liter of water which will decrease freezing point of water. Here is a table to better understand about water ballasting.

Torque values for tractor’s different parts

Troubleshooting

As we have already discussed that John Deere has recently launched this tractor in Indian tractor market and its a CRDI tractor and there is a lot of difference in this tractor and its old version and sometimes after a long time of use there may be some problem with it. To make farmer and mechanic friendly with this tractor here are some common problems and their possible reasons:

• Engine not starting:
  • Engine not starting:
  • Faulty starting circuits.
  • Battery low.
  • Loose electric connections.
  • Fuse blown.
  • Starter solenoid defective.
  • Fault in main switch.
  • Selection of wrong of engine oil.
  • Low fuel level.
  • Air trapped in fuel lines.
  • Exhaust blocked.
  • Fault in electric fuel system.
  • Fuel filters clogged
• Engine running abnormally:
  • Bad quality of fuel.
  • Water in fuel system.
  • Fault in fuel injectors.
  • Fault in electric fuel system.
  • Fault in electric control system.
• Low power output:
  • Air intake system blocked.
  • Exhaust system blocked.
  • Fuel filter blocked.
  • Engine overloading.
  • Selection of wrong engine oil.
  • Low temperature engine coolant.
  • Fault in fuel injectors.
  • Turbocharger is not working properly.
  • Fault in electric control system.
  • Fault in DTC system.
• High fuel consumption:
  • Overloading of engine.
  • Air cleaner is clogged.
  • Compression leagkage.
  • Wrong adjustment of valve clearance.
  • Leakage in fuel system.
  • Low of quality of fuel.
  • Clogged fuel injectors.
  • Fault in electric control system.
  • Fault in turbocharger.
• Abnormal sound from engine:
  • Wear in main or connecting rod bearing.
  • High crankshaft end play.
  • Valve clearance is very high.
  • Wear in piston rings.
  • Wear in timing gears.
  • Wear in valve guide, rocker arm shaft & rocker arm.
  • Band in pushrod.
  • Valve spring are damaged.
  • Loose flywheel.

If there is any another than these then you can ask about that in comment section, it’s possible reasons and solutions will be provided by the team.

Here is the some information about tractor’s periodic maintenance chart:

Periodic maintenance chart for John Deere 5405 CRDI tractor

Apart from this do the following jobs annually:

• Change transmission and hydraulic oil and oil filter (applicable for the transmission with dry clutch).
• Change primary air filter element.
• Inspect fan belt.

Change cabin air filter after 2 years or 2000 hours.
