Valve clearance & FIT chart of all latest tractors

Today valve clearance and fuel injection timing are the most important things for best performance of any tractor especially for non CRDI tractors but the main problem which mechanic faces is correct data of that tractor model on which he is working. When valve clearance and fuel injection timing of a tractor is at company specs then tractor provides its best performance i.e. low fuel consumption and best power output in its segment.

Here we are trying to provide exact value of valve clearance and fuel injection timing of all tractors. If company does some changes in new tractor model then we may be late to provide that data.

Swaraj tractor

Swaraj: Simple & Low Maintenance

Swaraj tractor company all tractor valve clearance and fuel injection timing chart:

Tractor modelInlet valve clearanceExhaust valve clearanceFuel injection timingNozzle pressure
Swaraj 825 XM0.25 mm in cold0.35 mm in coldNA250+-8 kg/cm2
Swaraj 724 XM 0.25 mm in cold0.35 mm in coldNA260+-10 kg/cm2
Swaraj 724 XM NT & Orchard0.25 mm in cold0.35 mm in coldNA260+-10 kg/cm2
Swaraj 834 XM0.25 mm in cold0.35 mm in coldNA260+-10 kg/cm2
Swaraj 733 FE 2 cylinder
Swaraj 733 FE
0.25 mm in cold0.35 mm in coldNA260+-10 kg/cm2
Swaraj 735 FE,XT, XM & FEe0.25 mm in cold0.35 mm in coldNA260+-10 kg/cm2
Swaraj 742 FE/XT0.25 mm in cold0.35 mm in coldNA260+-10 kg/cm2
Swaraj 744 XT
Swaraj 744 FE
0.25 mm in cold0.35 mm in coldNA260+-10 kg/cm2
Swaraj 855 FE old model0.25 mm in cold0.35 mm in coldNA260+-10 kg/cm2
Swaraj 855 FE new model0.25 mm in cold0.35 mm in coldNA260+-10 kg/cm2
Swaraj tractors valve clearance and fuel injection timings

To be continued for Swaraj tractors…..

Mahindra: Oldest Fellow of Farmer

Mahindra Bhoomiputra & XP tractors valve clearance and fuel injection timings:

Tractor modelsIntake valve clearanceExhaust valve clearanceFuel injection timingNozzle pressure
Arjun Novo 605 CRDI0.40 mm for cold0.40 mm for coldNo data availableNo data available
Arjun Novo 605 CRDI PP0.40 mm for cold0.40 mm for coldNo data availableNo data available
Arjun Novo 655 CRDI0.40 mm for cold0.40 mm for coldNo data availableNo data available
Arjun Novo 755 CRDI0.40 mm for cold0.40 mm for coldNo data availableNo data available
Mahindra 595 DI super turbo0.30 mm for hot
0.40 mm for cold		0.40 mm for coldNo data available250+ 8 kg/sq cm
Mahindra 575 DI MKM/DLX0.30 mm for hot
0.40 mm for cold		0.40 mm for coldNo data available250+ 8 kg/sq cm
Mahindra 585 DI0.30 mm for hot
0.40 mm for cold		0.40 mm for coldNo data available250+ 8 kg/sq cm
Mahindra 475 MKM/DI0.30 mm for hot
0.40 mm for cold		0.40 mm for coldNo data available250+ 8 kg/sq cm
Mahindra B275 DI TU MKM/DLX0.30 mm for hot
0.40 mm for cold		0.40 mm for coldNo data available250+ 8 kg/sq cm
Mahindra B275 DI MKM0.30 mm for hot
0.40 mm for cold		0.40 mm for coldNo data available250+ 8 kg/sq cm
Mahindra 265 DI MKM/DLX0.30 mm for hot
0.40 mm for cold		0.40 mm for coldNo data available250+ 8 kg/sq cm
Mahindra 275 DI0.30 mm for hot
0.40 mm for cold		0.40 mm for coldNo data available250+ 8 kg/sq cm
Mahindra 255 DI0.30 mm for hot
0.40 mm for cold		0.40 mm for coldNo data available250+ 8 kg/sq cm
Mahindra 265 power plus0.30 mm for hot
0.40 mm for cold		0.40 mm for coldNo data available250+ 8 kg/sq cm
Mahindra 415 DI MKM0.30 mm for hot
0.40 mm for cold		0.40 mm for coldNo data available250+ 8 kg/sq cm
Mahindra 575 DI power plus0.30 mm for hot
0.40 mm for cold		0.40 mm for coldNo data available250+ 8 kg/sq cm
Mahindra 245 DI orchard0.30 mm for hot
0.40 mm for cold		0.40 mm for coldNo data available250+ 8 kg/sq cm
Mahindra Arjun 555 DI power0.30 mm for cold0.40 mm for coldNo data availableNo data available
Mahindra Arjun 605 DI0.30 mm for cold0.40 mm for coldNo data availableNo data available
Mahindra Arjun 605 DI i0.30 mm for cold0.30 mm for coldNo data availableNo data available
Mahindra Arjun 655 DI PP (power plus)0.30 mm for cold0.40 mm for coldNo data availableNo data available
Mahindra Arjun 605 CRDI0.40 mm for cold0.40 mm for coldNo data availableNo data available
Mahindra Arjun 605 CRDI PP0.40 mm for cold0.40 mm for coldNo data availableNo data available
Mahindra Arjun 655 CRDI0.40 mm for cold0.40 mm for coldNo data availableNo data available
Mahindra Arjun 755 CRDI0.40 mm for cold0.40 mm for coldNo data availableNo data available
Mahindra tractors valve clearance and fuel injection timings

John Deere E series tractors valve clearance and fuel injection timings:

Tractor modelsIntake valve clearanceExhaust valve clearanceFuel injection timings
John Deere 5310 with 2400 engine rated RPM0.35 mm for cold0.45 mm for cold1+-1° BTDC
John Deere 5310 with 2100 engine rated RPM0.35 mm for cold0.45 mm for cold1+-1° BTDC
John Deere 5050 E0.35 mm for cold0.45 mm for cold11° BTDC
John Deere 52100.35 mm for cold0.45 mm for cold11° BTDC
John Deere 5055 E0.35 mm for cold0.45 mm for cold6.5+-1° BTDC
John Deere 5060 E0.35 mm for cold0.45 mm for cold6.5+-1° BTDC
John Deere 50750.35 mm for cold0.45 mm for cold6.5+-1° BTDC
John Deere 54050.35 mm for cold0.45 mm for cold1+-1° BTDC
John Deere 5310 CRDI0.36 mm for cold0.46 mm for coldNo data available
John Deere 5405 CRDI0.36 mm for cold0.46 mm for coldNo data available
John Deere 5075 CRDI0.36 mm for cold0.46 mm for coldNo data available
John Deere E series tractors valve clearance and fuel injection timings
John Deere 5310 CRDI

JOHN DEERE: The Oldest Player in Farming

John Deere D series tractor valve clearance and fuel injection timings:

Tractor modelsIntake valve clearanceExhaust valve clearanceFuel injection timings
John Deere 5036 D0.35 mm for cold0.45 mm for cold12.5° BTDC
John Deere 5038 D0.35 mm for cold0.45 mm for cold13.5° BTDC
John Deere 5039 E0.35 mm for cold0.45 mm for cold13.5° BTDC
John Deere 5042 D/V30.35 mm for cold0.45 mm for cold11.5° BTDC
John Deere 5045 D/V20.35 mm for cold0.45 mm for cold11° BTDC
John Deere 5050 D Turbo charged0.35 mm for cold0.45 mm for cold10° BTDC
John Deere 5050 D
John Deere 5050 D V8
John Deere 5050 D V1 (2wd & 4wd)		0.35 mm for cold0.45 mm for cold8+-1° BTDC
John Deere 5105
John Deere 5105 V2		0.35 mm for cold0.45 mm for cold11+-1° BTDC
John Deere 52050.35 mm for cold0.45 mm for cold17° BTDC
John Deere 5005 D0.35 mm for cold0.45 mm for cold12.5° BTDC
John Deere D series tractors valve clearance and fuel injection timings
Sonalika tractor valve clearance setting and pump setting
Sonalika DI 50

Sonalika: One Solution For All Farm Needs

Sonalika tractors valve clearance and fuel injection timing:

Tractor modelInlet valve clearanceExhaust valve clearanceFuel injection timing
Sonalika DI 35 Sikander
Sonalika DI 35 Sikander HDM		0.30 mm for cold0.40 mm for cold12° BTDC
Sonalika DI 35 (42HP)0.30 mm for cold0.40 mm for cold12° BTDC
Sonalika DI 42 & 740 III0.30 mm for cold0.40 mm for cold12° BTDC
Sonalika DI 42 Power plus0.30 mm for cold0.40 mm for cold12° BTDC
Sonalika Sikander 745 III & RX 470.30 mm for cold0.40 mm for cold12° BTDC
Sonalika Sikander 50 & Sikander 50 HDM0.30 mm for cold0.40 mm for cold12° BTDC
Sonalika Sikander 750 III0.30 mm for cold0.40 mm for cold14° BTDC
Sonalika Sikander 55 DI0.30 mm for cold0.40 mm for cold12° BTDC
Sonalika Sikander 60 & 60 RX0.30 mm for cold0.40 mm for cold12° BTDC
Sonalika tractors valve clearance and fuel injection timing
New Holland 5620 CRDI

New Holland: Farming With Passion

New Holland TX tractors Valve clearance and fuel injection timing

Tractor modelsIntake Valve clearanceExhaust valve clearanceFuel injection timings
New Holland TX 30320.30 mm for cold0.30 mm for cold15° BTDC
New Holland TX 32300.30 mm for cold0.30 mm for cold17° BTDC
New Holland 35100.30 mm for cold0.30 mm for cold13° BTDC
New Holland 40100.30 mm for cold0.30 mm for cold14° BTDC
New Holland 45100.30 mm for cold0.30 mm for cold14° BTDC
New Holland 47100.30 mm for cold0.30 mm for cold12° BTDC
New Holland 3600 and 3600-20.30 mm for cold0.30 mm for coldNo data available
New Holland 3630 TX super plus IVECO engine only0.30 mm for cold0.30 mm for coldNo data available
New Holland 3630 special edition0.30 mm for cold0.30 mm for coldNo data available
New Holland 5620 TX plus0.30 mm for cold0.30 mm for coldNo data available
New Holland 5630 TX plus0.30 mm for cold0.30 mm for coldNo data available
New Holland 5620 CRDI0.30 mm for cold (estimated)0.30 mm for cold
(estimated)		No data available
New Holland 5630 CRDI0.30 mm for cold
(estimated)		0.30 mm for cold
(estimated)		No data available
New Holland TX tractors valve clearance and fuel injection timings

Preet: Agriculture Machine Under Budget

Preet tractor valve clearance and fuel injection timings

Tractor modelsInlet valve clearanceExhaust valve clearanceFuel injection timing
Preet 3549 Challenger0.30 mm for cold0.40 mm for cold12°+-1° BTDC
Preet 4049 Challenger0.30 mm for cold0.40 mm for cold12°+-1° BTDC
Preet 4549 Challenger0.30 mm for cold0.40 mm for cold12°+-1° BTDC
Preet 955 Challenger0.30 mm for cold0.40 mm for cold11°+-1° BTDC
Preet 60490.30 mm for cold0.40 mm for cold8°+-1° BTDC
Preet 65490.30 mm for cold0.40 mm for cold8°+-1° BTDC
Preet tractor valve clearance and fuel injection timings

Indo Farm quality in budget

Indo Farm valve clearance and fuel injection timing

Tractor modelsIntake valve clearanceExhaust valve clearanceFuel injection timingInjection pressure

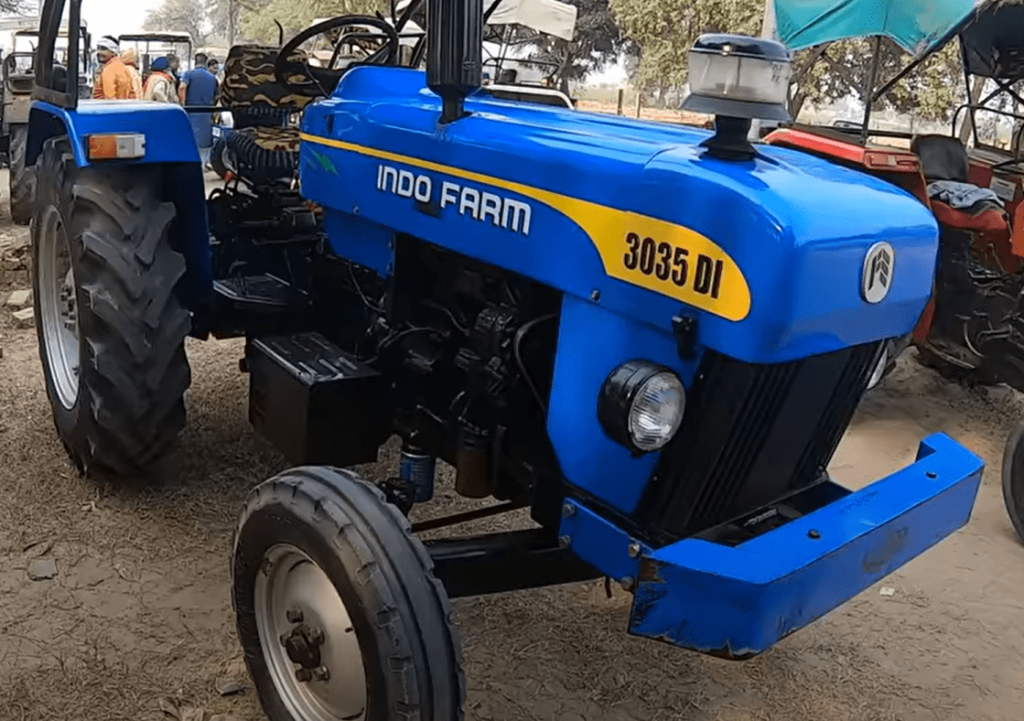

Indo Farm 3035 DI0.30 mm for cold0.40 mm for cold10°+-1° BTDC250+8 kg/cm2
Indo Farm 3040 DI0.30 mm for cold0.40 mm for cold11°+-1° BTDC250+8 kg/cm2
Indo Farm 3048 DI0.30 mm for cold0.40 mm for cold12°+-1° BTDC250+8 kg/cm2
Indo Farm 3055 NV0.30 mm for cold0.40 mm for cold12°+-1° BTDC250+8 kg/cm2
Indo Farm 3055 DI0.30 mm for cold0.40 mm for cold11°+-1° BTDC250+8 kg/cm2
Indo Farm 3065 DI0.30 mm for cold0.40 mm for cold11°+-1° BTDC250+8 kg/cm2
Indo Farm 3075 DI0.30 mm for cold0.40 mm for cold11°+-1° BTDC250+8 kg/cm2
Indo Farm 3090 DI0.30 mm for cold0.40 mm for cold11°+-1° BTDC250+8 kg/cm2
Indo Farm tractor valve clearance and fuel injection timing
HMT world

HMT & Zetor: Welcome to the world of innovation

HMT and Zetor tractor valve clearance and fuel injection timing:

Tractor modelsIntake valve clearanceExhaust valve clearanceFuel injection timing
Zetor 20110.20 mm for cold0.30 mm for cold18° BTDC for engine with serial number up to 3097 and from 3401 up to 3477.
20-21° BTDC for engine with serial number from 3098 to 3400 and from 3478.
Zetor 30110.20 mm for cold0.30 mm for cold18° BTDC for engine with serial number up to 50439.
20-21° BTDC for engine with serial number 50440 and after this also
Zetor 40110.20 mm for cold0.30 mm for cold18° BTDC for engine with serial number up to 15219.
20-21° BTDC for engine with serial number 15220 and after this also
HMT/Zetor 25110.20 mm for cold0.30 mm for cold20° BTDC
HMT/Zetor 35110.20 mm for cold0.30 mm for cold20° BTDC
HMT/Zetor 45110.20 mm for cold0.30 mm for cold20° BTDC
Zetor 55110.20 mm for cold0.30 mm for coldNo data available
HMT 59110.25 +- 0.5 mm for cold0.25 +- 0.5 mm for cold24.5° – 2° BTDC
Zetor 80110.30 mm for cold0.30 mm for cold24°+2° before TDC
Zetor 81110.30 mm for cold0.30 mm for coldNo data available
HMT and Zetor tractor valve clearance and fuel injection timing

Trakstar: Powerhouse in a small machine

Trakstar company tractors valve clearance and fuel injection timing

Tractor modelIntake valve clearanceExhaust valve clearanceInjection pressureFuel injection timing
Trakstar 5310.40 mm for cold0.50 mm for cold250+-8 kg/cm2No data available
Trakstar 5360.40 mm for cold0.50 mm for cold250+-8 kg/cm2No data available
Trakstar 5400.40 mm for cold0.50 mm for cold250+-8 kg/cm2No data available
Trakstar 5450.40 mm for cold0.50 mm for cold250+-8 kg/cm2No data available
Trakstar 5500.40 mm for cold0.50 mm for cold250+-8 kg/cm2No data available
Trakstar 531 DLX0.40 mm for cold0.50 mm for cold250+-8 kg/cm2No data available
Trakstar 540 DLX0.40 mm for cold0.50 mm for cold250+-8 kg/cm2No data available
Trakstar company tractor valve clearance and fuel injection timing
Eicher tractor valve adjustment and spill settings
Eicher tractor India

Eicher: Backbone of Indian farming

Eicher company tractor valve clearance and fuel injection timing

Tractor modelIntake valve clearanceExhaust valve clearanceFuel injection timing
Eicher 2410.10 mm for cold0.15 mm for cold9° BTDC
Eicher 2420.10 mm for cold0.15 mm for cold9° BTDC
Eicher 3120.10 mm for cold0.10 mm for coldNo data available
Eicher 3640.10 mm for cold0.10 mm for coldNo data available
Eicher 3680.10 mm for cold0.10 mm for coldNo data available
Eicher 4850.10 mm for cold0.10 mm for coldNo data available
Eicher 5480.10 mm for cold0.10 mm for coldNo data available
Eicher 3300.30 mm for cold0.30 mm for coldNo data available
Eicher 3330.30 mm for cold0.30 mm for coldNo data available
Eicher 3800.30 mm for cold0.30 mm for coldNo data available
Eicher 4800.30 mm for cold0.30 mm for coldNo data available
Eicher 5510.35 mm for cold0.35 mm for coldNo data available
Eicher 5570.35 mm for cold0.35 mm for coldNo data available
Eicher 6500.35 mm for cold0.35 mm for coldNo data available
Eicher 56600.35 mm for cold0.35 mm for coldNo data avialable
Eicher company tractor valve clearance and fuel injection timing
Deutz Fahr

Deutz Fahr: Drive Deutz and save diesel

Deutz Fahr company tractor valve clearance and fuel injection timing:

Tractor modelIntake valve clearanceExhaust valve clearanceFuel injection pressureFuel injection timing
SAME 3530.25 mm for cold0.25 mm for coldNo data availableNo data available
SAME 4030.25 mm for cold0.25 mm for coldNo data availableNo data available
SAME 4530.25 mm for cold0.25 mm for coldNo data availableNo data available
SAME 5030.25 mm for cold0.25 mm for coldNo data availableNo data available
SAME 6030.25 mm for cold0.25 mm for coldNo data availableNo data available
Deutz Fahr 40 e agromaxx0.25 mm for cold0.25 mm for cold180+8 bar8°BTDC
Deutz Fahr 45 e agromaxx0.25 mm for cold0.25 mm for cold180+8 bar10°BTDC
Deutz Fahr 50 e agromaxx0.25 mm for cold0.25 mm for cold180+8 bar10°BTDC
Deutz Fahr 55 e agromaxx0.25 mm for cold0.25 mm for cold180+8 bar10°BTDC
Deutz Fahr 60 e agromaxx0.25 mm for cold0.25 mm for cold180+8 bar10°BTDC
Deutz Fahr 70 agrolux0.25 mm for cold0.25 mm for coldNo data availableNo data available
Deutz Fahr 75 profiline0.25 mm for cold0.25 mm for coldNo data available10° +- 1° BTDC
Deutz Fahr 80 profiline0.20 +- 0.05 mm for cold0.20 +- 0.05 mm for coldNo data available12° +- 1° BTDC
SAME Deutz Fahr company tractors valve clearance and fuel injection timings

Kubota: Comfort matters for us

Kubota company tractor valve clearance and fuel injection timings:

Tractor modelInlet valve clearanceExhaust valve clearanceFuel injection timing
Kubota MU 55010.13 to 0.17 mm for cold0.13 to 0.17 mm for cold4.75° +- 1° BTDC
Kubota MU 45010.13 to 0.17 mm for cold0.13 to 0.17 mm for coldNo data available
Kubota company tractor valve clearance and fuel injection timing

Powertrac: Combination of past & future

Escort Powertrac tractor valve clearance chart

ModelIntake valve clearanceExhaust valve clearance
Powertrac 4250.30 mm for cold0.40 mm for cold
Powertrac 434 DS plus0.30 mm for cold0.40 mm for cold
Powertrac 4390.30 mm for cold0.40 mm for cold
ALT 35000.30 mm for cold0.40 mm for cold
Powertrac EURO 370.30 mm for cold0.40 mm for cold
Powertrac 439 Diesel saver +0.30 mm for cold0.40 mm for cold
ALT 40000.30 mm for cold0.40 mm for cold
Powertrac EURO 410.30 mm for cold0.40 mm for cold
Powertrac EURO 450.30 mm for cold0.40 mm for cold
Powertrac EURO 500.30 mm for cold0.40 mm for cold
Powertrac 4455 DS + EURO0.30 mm for cold0.40 mm for cold
Powertrac 4455 BT0.30 mm for cold0.40 mm for cold
Escort Powertrac tractors valve clearance chart and injection pressure
ModelInjection pressureCompression pressure
Powertrac 425250+8 kg/cm222.85+-3.5 kg/cm2
Powertrac 434 DS plus250+8 kg/cm222.85+-3.5 kg/cm2
Powertrac 439250+8 kg/cm222.85+-3.5 kg/cm2
ALT 3500250+8 kg/cm222.85+-3.5 kg/cm2
Powertrac EURO 37250+8 kg/cm222.85+-3.5 kg/cm2
Powertrac 439 Diesel saver +250+8 kg/cm222.85+-3.5 kg/cm2
ALT 4000250+8 kg/cm222.85+-3.5 kg/cm2
Powertrac EURO 41250+8 kg/cm222.85+-3.5 kg/cm2
Powertrac EURO 45250+8 kg/cm222.85+-3.5 kg/cm2
Powertrac EURO 50250+8 kg/cm222.85+-3.5 kg/cm2
Powertrac 4455 DS + EURO250+8 kg/cm222.85+-3.5 kg/cm2
Powertrac 4455 BT250+8 kg/cm222.85+-3.5 kg/cm2
Escort Powertrac tractors valve clearance chart and injection pressure

Escort Farmtrac tractors valve clearance chart

FARMTRAC THE AGRICULTURE LEADER

ModelIntake valve clearanceExhaust valve clearance
Farmtrac 450.36 mm to 0.46 mm in cold0.43 mm to 0.53 mm in cold
Farmtrac 600.36 mm to 0.46 mm in cold0.43 mm to 0.53 mm in cold
Farmtrac AVL 450.40 mm in cold0.60 mm in cold
Farmtrac AVL 600.40 mm in cold0.60 mm in cold
Farmtrac AVL 650.40 mm in cold0.60 mm in cold
Farmtrac AVL 700.40 mm in cold0.60 mm in cold
Farmtrac 37 Champion XP series0.30 mm in cold0.40 mm in cold
Farmtrac 41 Champion XP series0.30 mm in cold0.40 mm in cold
Farmtrac 6055 & other 4 cylinder models0.30 mm in cold0.40 mm in cold
Farmtrac tractors valve clearances chart

Popular bikes valve clearance chart

Bike name and modelIntake valve clearance valueExhaust valve clearance value
Bajaj platina kick start model0.08 mm for intake0.10 mm for exhaust
Bajaj platina BS IV electric start model0.05 mm for intake0.10 mm for exhaust
Bajaj CT 100 Kick start model0.08 mm for intake0.10 mm for exhaust
Bajaj CT 100 Electric start model0.05 mm for intake0.10 mm for exhaust
Bajaj Platina BS VI0.05 mm for intake0.10 mm for exhaust
Hero Splendor0.10 mm for intake0.10 mm for exhaust
Hero HF Deluxe0.10 mm for intake0.10 mm for exhaust
Popular Indian bikes valve clearance chart

Bajaj Platina maintenance chart and torque values:

Bajaj Platina bike periodic maintenance chart
Maintenance chart and torque specs given below
Bajaj Platina bike periodic maintenance chartPLATINA 100 cc maintenance chart and torque specsDownload

To be continued…..

If anyone has more data which is not at this page and wants to share with us then please kindly Contact Us.
